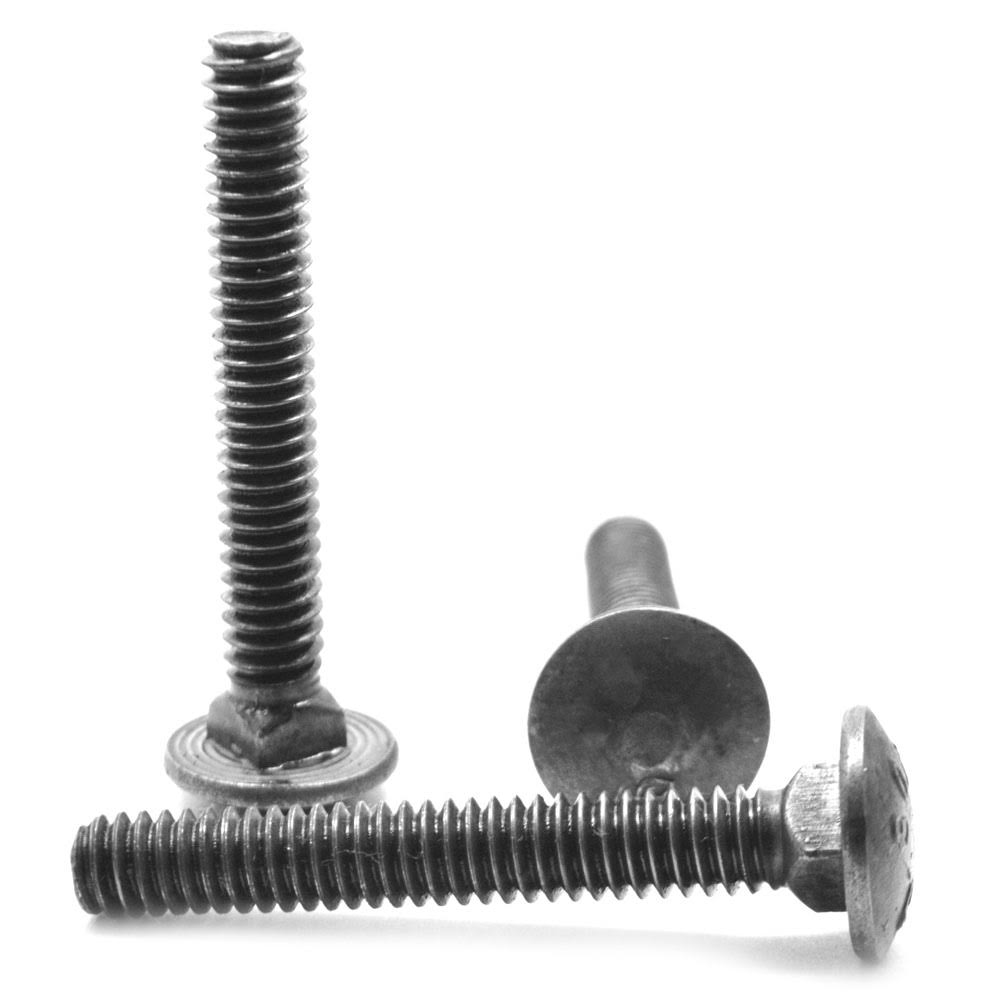

22-13 x 11 1/2 x 226 x 22 Coarse Thread Grade A Carriage Bolt Low Carbon Steel Q780
Sale price
$16.50
Regular price $59.87
Skip to product information
Part #: 0000-128918. Buy as few as 16 pcs. Discounts on larger quantities. PRODUCT SPECIFICATIONS Part #: 0000-128918 Fastener Type: Carriage Bolt Size Description: 1/2'-13 x 11 1/2'6'THD Diameter/Nominal Size: 1/2' Length: 11 1/2' Head Diameter: 1.032-1.094' Head Height: 0.250-0.270' Neck Across Square/Diameter: 0.492-0.515' Neck Height: 0.250-0.281' Thread Pitch: 13 Thread Pitch Type: Coarse Thread Direction: Right Thread Coverage: 6' THD System of Measurement: Inch Grade: A (2) Material: Low Carbon Steel Finish: Plain Finish (No Plating) Standards Met: A307 Average Piece Weight: 0.6520000 lbs. Carriage bolts are Ideal for use in square holes in wood-to-wood and wood-to-metal fastening; bolt has a square neck that prevents it from turning once screwed in. When trying to determine the length of the item, measure from just under the head of the bolt.
22-13 x 11 1/2 x 226 x 22 Coarse Thread Grade A Carriage Bolt Low Carbon Steel Q780
Sale price
$16.50
Regular price $59.87
Shipping calculated at checkout.
